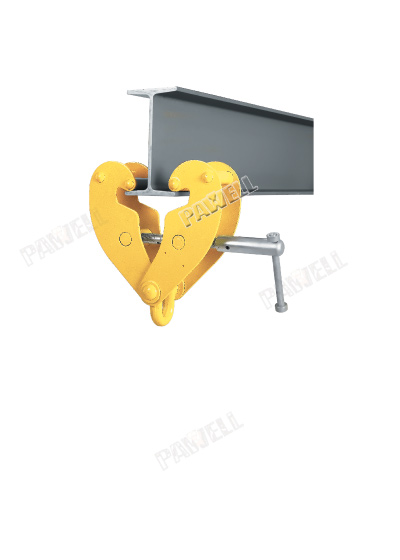

BEAM CLAMP Model: BC Capacity 1000 -10000 kg

Features

• Provides a quick and versatile rigging point for hoisting equipment, pulley blocks or loads.Flexible application due to wide adjustment range.The central threaded spindle allows easy attachment and a safe and secure grip.The spindle can be secured against loosening.

Option
• Can be supplied with shackle.
• Small dimensions for applications at beams with a low base height.


Technical Parameters

Item Code Capacity (kg) Flange width (mm) Dimensions(mm) Net weight(Kg)
A B C D E F G H I
Max. Min. Max. Max. Min. Min. Max. Min.
212010 1000 75-230 246 186 350 84 4 215 150 115 44 20 14 21 3.8
212020 2000 75-230 246 186 350 94 6 215 150 115 44 20 14 21 4.6
212030 3000 80-320 320 232 455 122 8 255 225 180 75 22 30 34 9.2
212050 5000 90-310 310 242 445 129 10 255 225 180 75 28 30 34 11
212100 10000 90-320 320 268 480 146 12 275 220 175 66 38 34 35 17.2
213010 1000 75-230 246 186 350 84 4 215 150 115 44 20 14 21 4.1
213020 2000 75-230 246 186 350 94 6 215 150 115 44 20 14 21 5
213030 3000 80-320 320 232 455 122 8 255 225 180 75 22 30 34 10.4
213050 5000 90-310 310 242 445 129 10 255 225 180 75 28 30 34 12
213100 10000 90-320 320 268 480 146 12 275 220 175 66 38 34 35 16


Note: Item No. 213### is coupled with shackle
